Aplikasi
Piranti wesi cor ulet kanggo banyu ngombe lan cairan netral nganti +70°C
Karakteristik Teknis
- Sambungan ujung flens miturut EN1092-2: PN10/PN16
- Dirancang miturut EN545
- Tekanan kerja maksimal: PN16 / 16 bar
- Suhu kerja: 0°C – +70°C
- Werna RAL5015
- Lapisan epoksi bubuk kanthi kekandelan 250 μm
- Awak saka wesi ulet EN-GJS-500-7

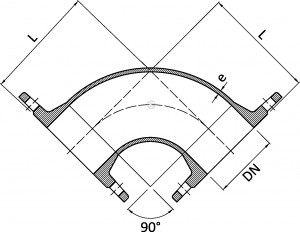

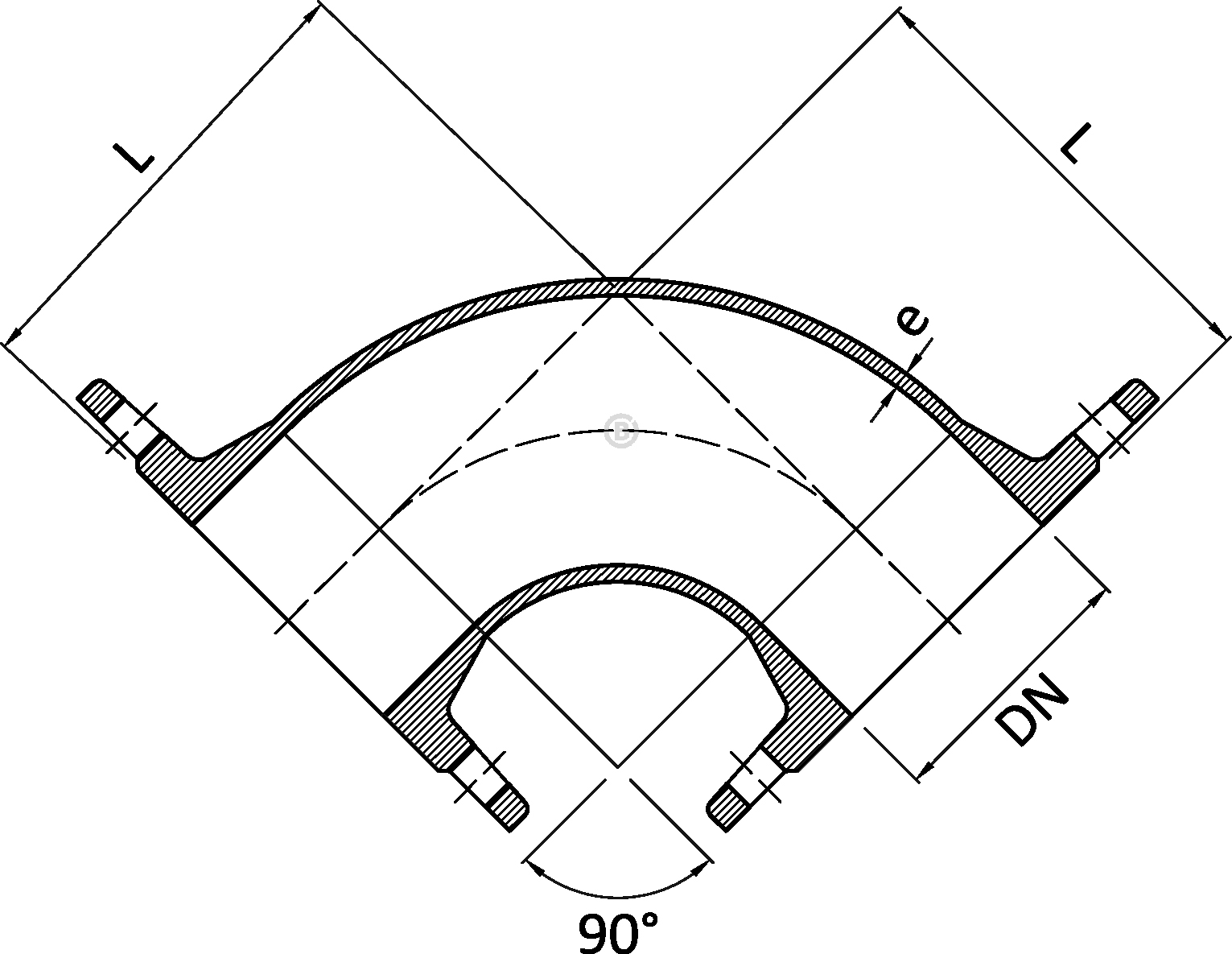

Dimensi
| DN | L | e | Pengeboran Fl. | Bobot | Saham |
|---|---|---|---|---|---|
| 50 | 150 | 7 | PN10/16 | 8,0 | Disimpen |
| 65 | 160 | 7 | PN10/16 | 8,5 | Disimpen |
| 80 | 165 | 7 | PN10/16 | 9,7 | Disimpen |
| 100 | 180 | 7,2 | PN10/16 | 11,9 | Disimpen |
| 150 | 220 | 7,8 | PN10/16 | 21,0 | Disimpen |
| 200 | 260 | 260 | PN10 | 33,6 | Disimpen |
| 200 | 260 | 260 | PN16 | 33,6 | Disimpen |
| 250 | 350 | 9 | PN10 | 52,0 | Disimpen |
| 250 | 350 | 9 | PN16 | 52,0 | Disimpen |
| 300 | 400 | 9,6 | PN10 | 72,0 | Disimpen |
| 300 | 400 | 9,6 | PN16 | 72,0 | Disimpen |
| 400 | 500 | 10,4 | PN10 | 151 | Disimpen |
| 500 | 600 | 12,0 | PN10 | 190 | Disimpen |
| 600 | 700 | 13,2 | PN10 | 286 | Disimpen |
